Hanging Stick Noodle Production Line Supplier

Finished product:Stick noodles
Capacity:3T/8h
Power:75 kw
Brand:LONGER Machinery
Payment Method:T/T, L/C, Western Union, Money Gram
Description:

Features

Low Temperature stick noodle production line, also named fine dried noodle production line, uses vacuum mixing technology and photoelectric control technology, showing the advanced level of the domestic industry. This vermicelli production line is equipped with excellent equipment, and the whole process is highly automated, it can be operated, and production continuity is good, the product quality is excellent, the finished product rate is high, and the energy consumption is low.

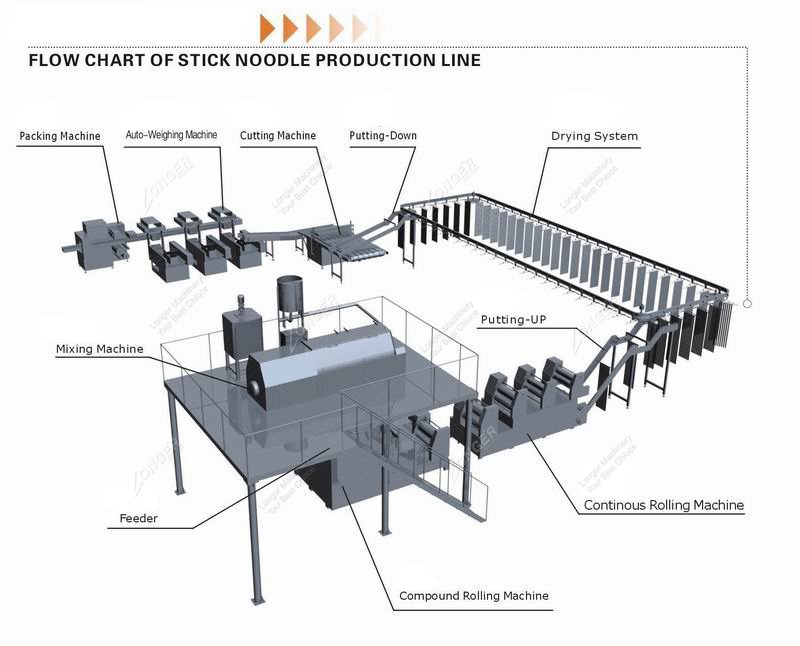

Flow Chart of This Stick Noodle Manufacturing Plant:

Main Process of This Noodle Line:

1. Power supply system

Through automatic feeding system, the raw materials are transported to the metering device in a certain way.

2. Dough mixing, curing and rolling

Dough mixing technology includes brine mixing plant, quantitative water supply device and two sets dough mixer machine.

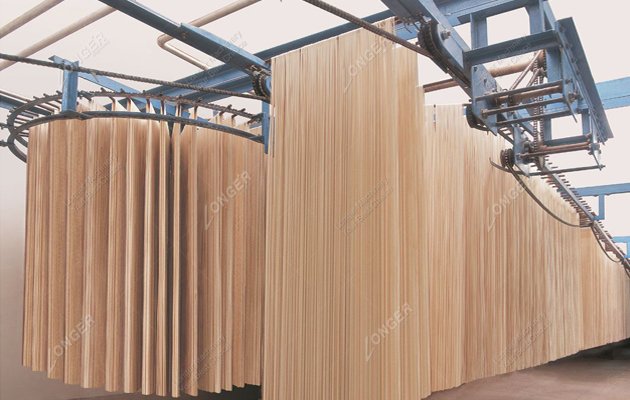

3. Drying

The noodles into the chamber, cut by cutting machine, the wet noodle can be through the wet noodle returning device continuously and uniformly conveyed to the uniaxial U curing machine.

4. Cutting and packing

Cut by cutting machine, and the finished noodles will be transported to the weighing and packing machine through noodles conveying equipment.

Technical Data

Equipment Name	Model	Qty
Measure and Feeding Machine	LGYSJ10	1set
Double Shaft and Speed Mixer	LGHMJ200	1set
Falling Powder Bucket		1pc
U Type Dough Ripening Machine	LGXHJ200	1set
Dough Rolling Machine	LGMT7-50	1set
Hanging Stick Supplying Machine	LGGT450	1set
Noodle Cutting Tidy Machine	LGZJQ800	1set
Hanging Rising Machine	LGSJ350	1set
Chain Plate Drying Machine	LGPHF30	1set
Sideway Hang Down Machine	LGXJ350	1set
Automatic Hob Cutting Machine	LGZQM50A	1set
Electric Control System		1set
Total	Total Power ~75kw
